Amazon EKS Workshop Study 2기
8주차
EKS IaC ( Terraform )
eks 환경을 테라폼으로 구성해보기
실습환경 구성
윈도우에서 구성하려면 mac 환경에서보다 이것저것 해 줘야할 게 많다. brew 짱짱맨..
wsl2 설치 > 실행 > 테라폼 설치
wget -O- https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install terraform
# 테라폼 버전 정보 확인
terraform version
https://www.how2shout.com/linux/how-to-install-eksctl-cli-tool-on-ubuntu-linux/
시스템 업데이트
sudo apt update
AWSCLIL 설치
sudo apt install awscli
#자격증명
aws configure
EKSCTL 설치(amd64기)
curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp
바이너리 파일 위치 이동
sudo mv /tmp/eksctl /usr/local/bin
설치 확인
eksctl version
eksctl --help
KUBECTL 설치
curl -O https://s3.us-west-2.amazonaws.com/amazon-eks/1.29.3/2024-04-19/bin/linux/amd64/kubectl
chmod +x ./kubectl
mkdir -p $HOME/bin && cp ./kubectl $HOME/bin/kubectl && export PATH=$HOME/bin:$PATH
#확인
kubectl version --client

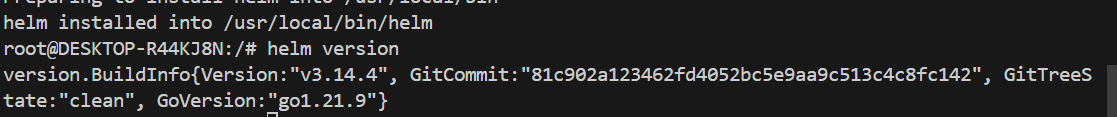

HELM 설치
기존의 바이너리 파일 설치부터하는 방법도 있는데, 공식 인스톨러 스크립트가 있다니 그것을 사용
https://helm.sh/docs/intro/install/
curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh
+) third party 를 사용한 방법(apt)
curl https://baltocdn.com/helm/signing.asc | gpg --dearmor | sudo tee /usr/share/keyrings/helm.gpg > /dev/null
sudo apt-get install apt-transport-https --yes
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/helm.gpg] https://baltocdn.com/helm/stable/debian/ all main" | sudo tee /etc/apt/sources.list.d/helm-stable-debian.list
sudo apt-get update
sudo apt-get install helm
테라폼 실습을 위한 디렉토리
mkdir learn-terraform
cd learn-terraform
touch main.tf
Amazon Linux 2 최신 ami id 찾기
#aws ec2 describe-images --owners self amazon
aws ec2 describe-images --owners amazon --filters "Name=name,Values=amzn2-ami-hvm-2.0.*-x86_64-gp2" "Name=state,Values=available" --query 'Images|sort_by(@, &CreationDate)[-1].[ImageId, Name]' --output text
ami-0217b147346e48e84 amzn2-ami-hvm-2.0.20240412.0-x86_64-gp2
aws ec2 describe-images --owners amazon --filters "Name=name,Values=amzn2-ami-hvm-2.0.*-x86_64-gp2" "Name=state,Values=available" --query 'Images|sort_by(@, &CreationDate)[-1].[ImageId]' --output text
ami-0217b147346e48e84
AL2ID=`aws ec2 describe-images --owners amazon --filters "Name=name,Values=amzn2-ami-hvm-2.0.*-x86_64-gp2" "Name=state,Values=available" --query 'Images|sort_by(@, &CreationDate)[-1].[ImageId]' --output text`
echo $AL2ID
ec2 생성 모니터링
# [터미널1] EC2 생성 모니터링
export AWS_PAGER=""
while true; do aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output text ; echo "------------------------------" ; sleep 1; done
Terraform 기본 사용법 -> 별도 포스팅
https://bravesunfish.tistory.com/80
Terraform 으로 EKS 배포
테라폼 배포 실행
> 테라폼은 디렉토리 기준으로 파일을 읽기 때문에 실행하고자하는 tf 가 있는 곳에서 실행
# 초기화
terraform init
ls -al

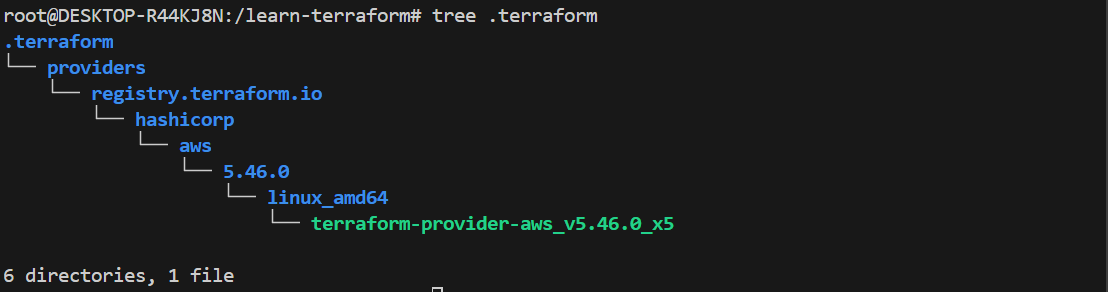

tree .terraform
# plan 확인
terraform plan
# apply 실행
terraform apply
Enter a value: yes 입력
# ec2 생성 확인 : aws 웹 관리 콘솔에서도 확인 - 서울 리전 선택
export AWS_PAGER=""
aws ec2 describe-instances --output table
# 테라폼 정보 확인
terraform state list
terraform show
terraform show aws_instance.example

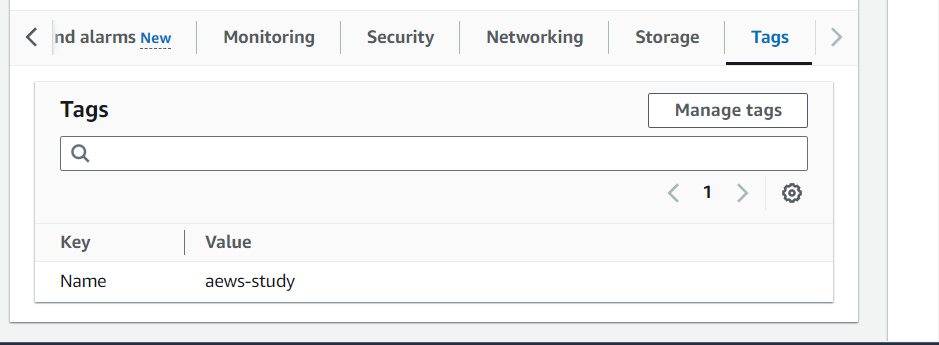

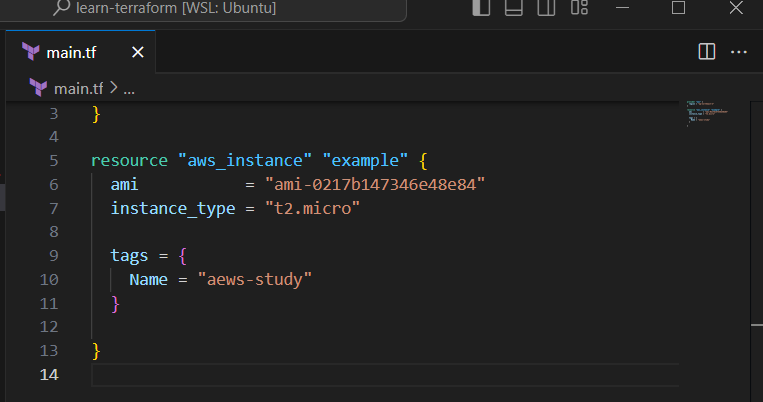

코드 파일 수정 > 반영 확인 : 태그 수정

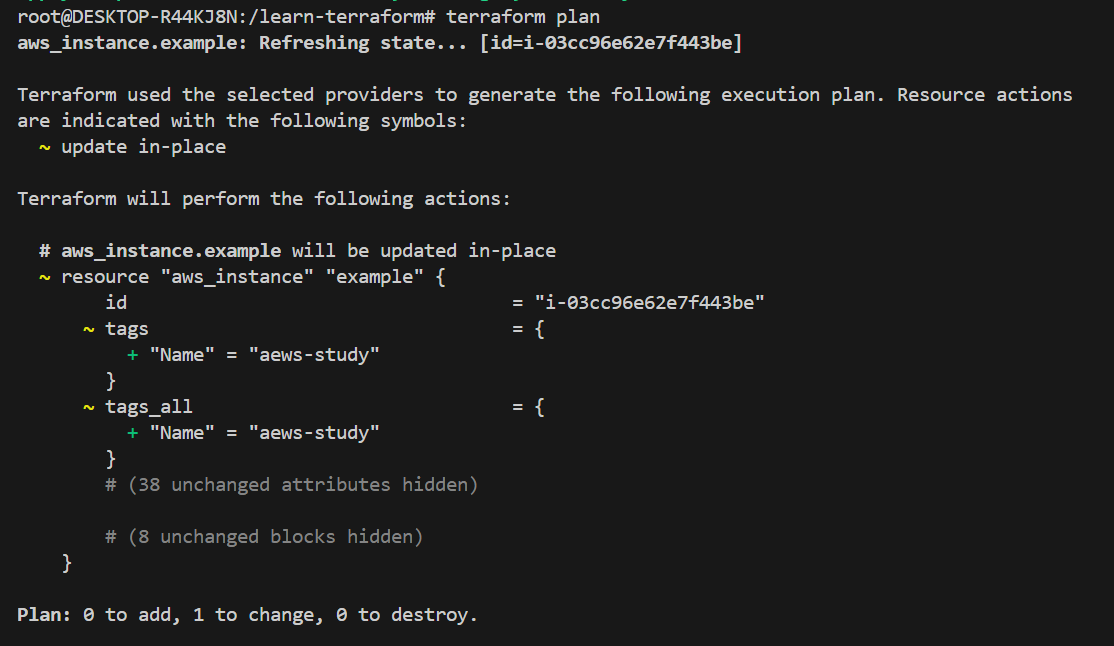

plan 으로 변경 예정 값 확인 & apply 로 적용
첫 번째 EKS 클러스터 배포
# 코드 가져오기
git clone https://github.com/gasida/aews-cicd.git
cd aews-cicd/4
# terraform 환경 변수 저장
export TF_VAR_KeyName='peach'
echo $TF_VAR_KeyName
#
terraform init
terraform plan
# 10분 후 배포 완료
terraform apply -auto-approve
만들어 져야할 것 : VPC, Subnet, IGW, NATGW, Routing Table, EKS, EKS SG
state 파일 생성 완
확인
#
kubectl get node -v=6
# EKS 클러스터 인증 정보 업데이트
CLUSTER_NAME=myeks
aws eks update-kubeconfig --region ap-northeast-2 --name $CLUSTER_NAME
kubectl config rename-context "arn:aws:eks:ap-northeast-2:$(aws sts get-caller-identity --query 'Account' --output text):cluster/$CLUSTER_NAME" "Aews-Labs"
#

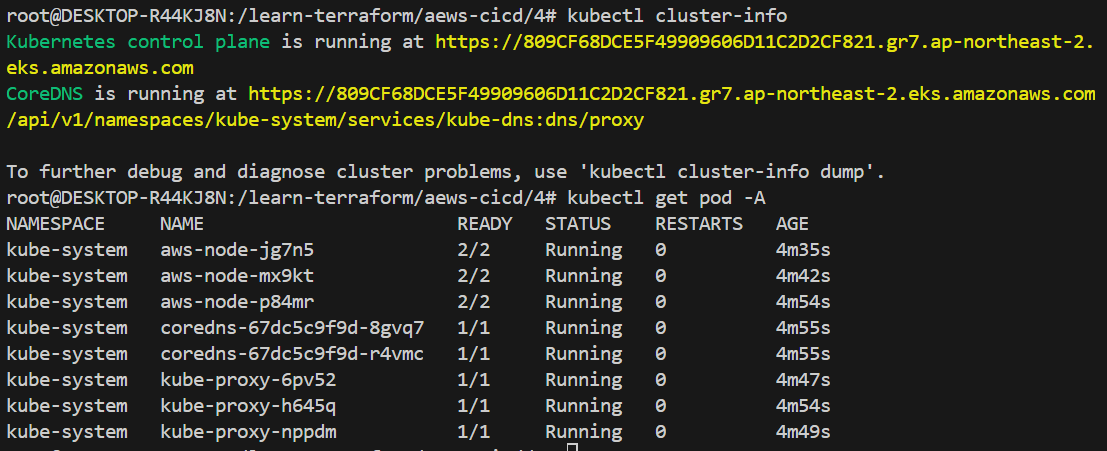

kubectl cluster-info
kubectl get node --label-columns=node.kubernetes.io/instance-type,eks.amazonaws.com/capacityType,topology.kubernetes.io/zone
kubectl get pod -A

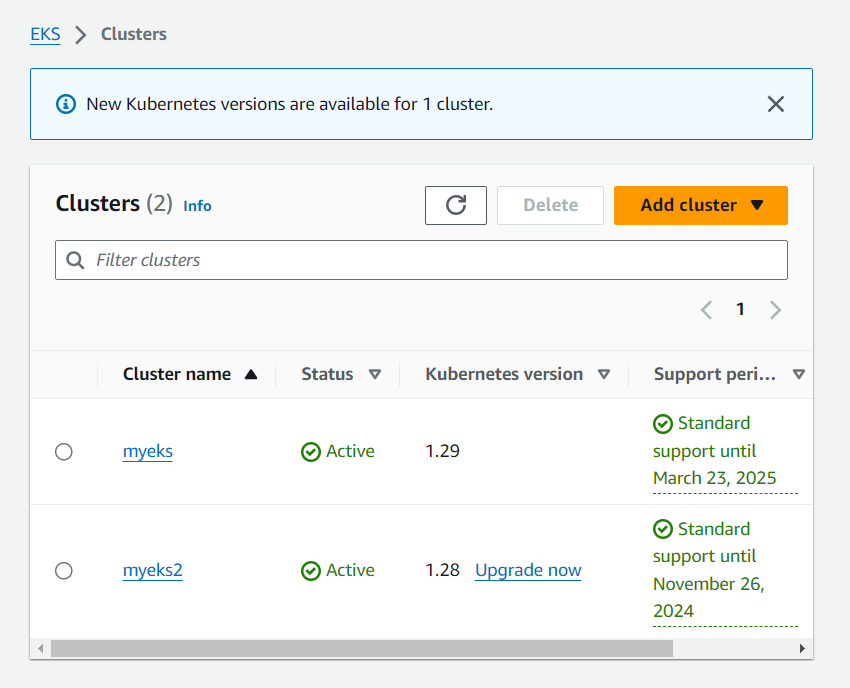

두 번째 배포 > 코드 재사용 검증
첫 번째 코드를 그대로 복사해서 myeks2 로 변수만 바꿔서 새로 apply 했으니 그대로 생성되는가 확인
#
cd ..
mkdir 5
cd 5
cp ../4/*.tf .
ls
#
terraform init
terraform apply -auto-approve -var=ClusterBaseName=myeks2 -var=KubernetesVersion="1.28"

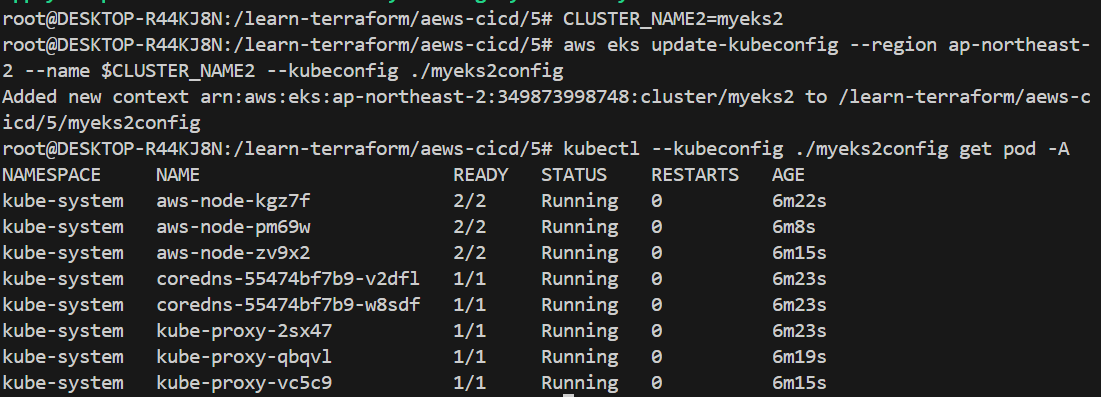

# EKS 클러스터 인증 정보 가져오기
CLUSTER_NAME2=myeks2
aws eks update-kubeconfig --region ap-northeast-2 --name $CLUSTER_NAME2 --kubeconfig ./myeks2config
# EKS 클러스터 정보 확인
kubectl --kubeconfig ./myeks2config get node
kubectl --kubeconfig ./myeks2config get pod -A
